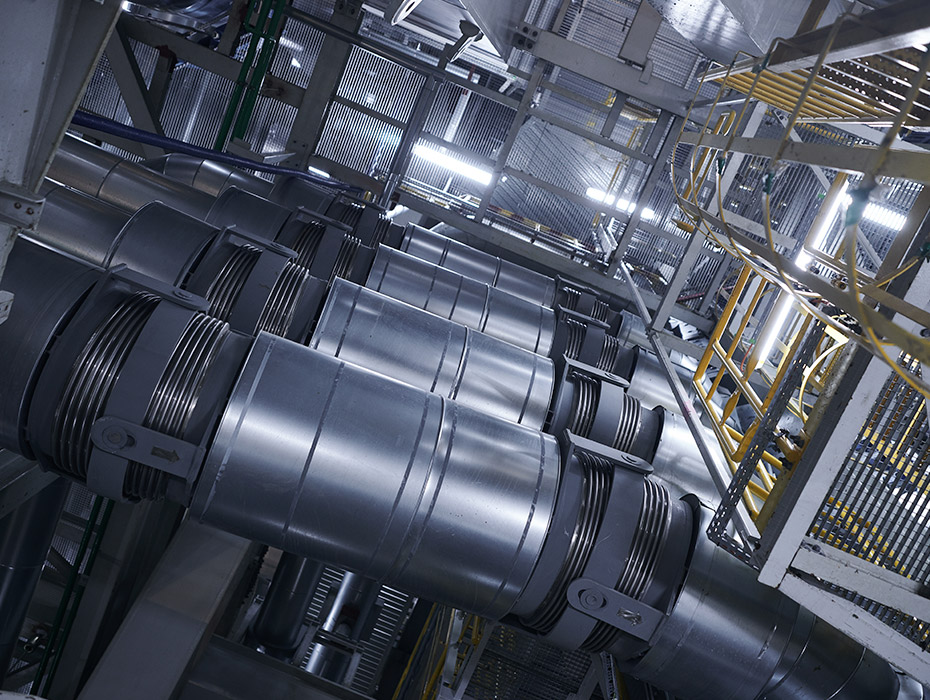

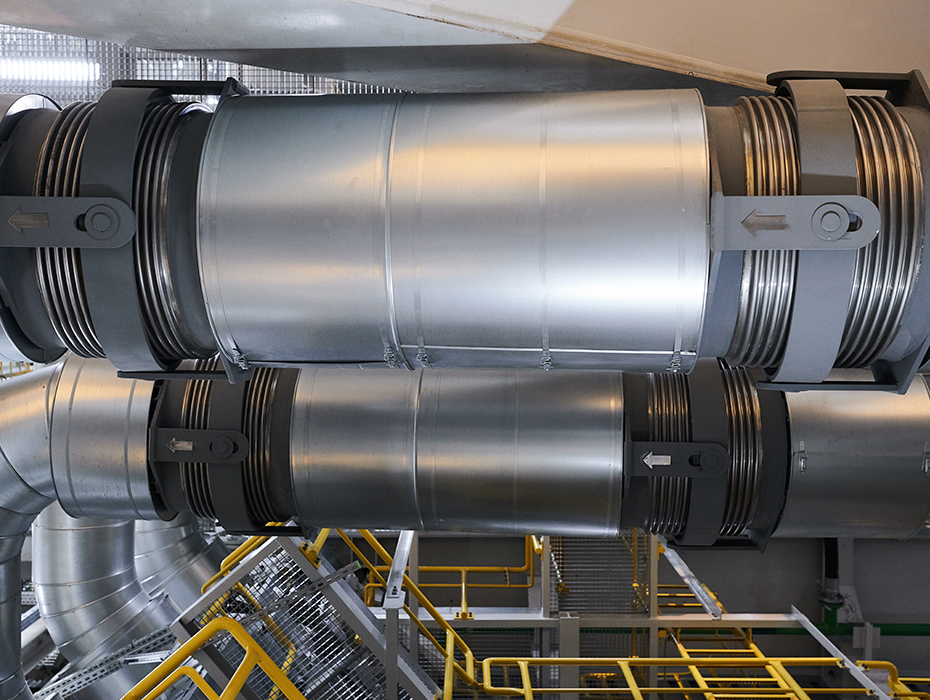

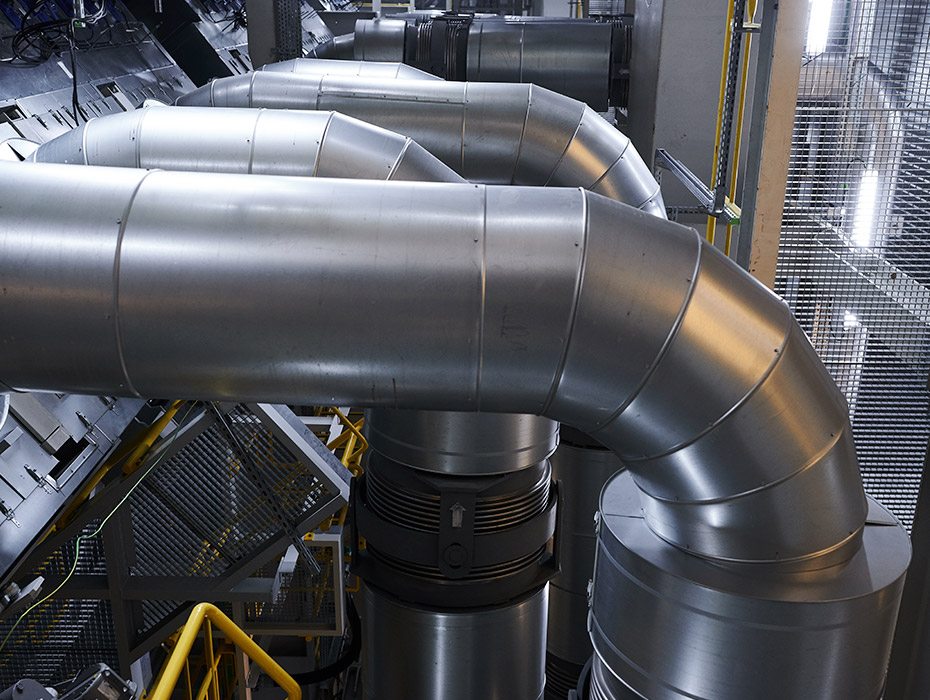

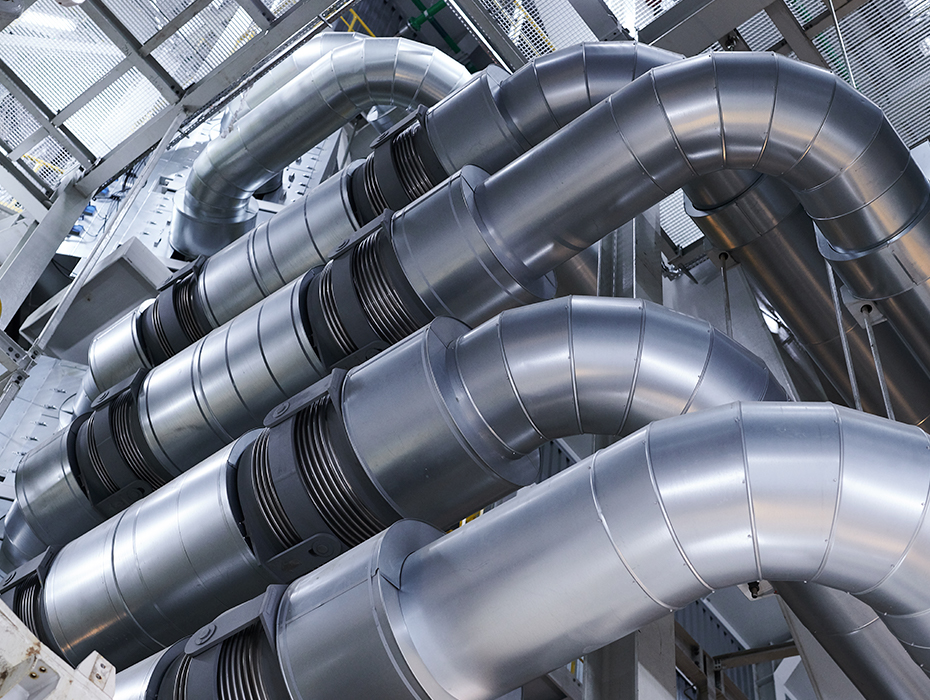

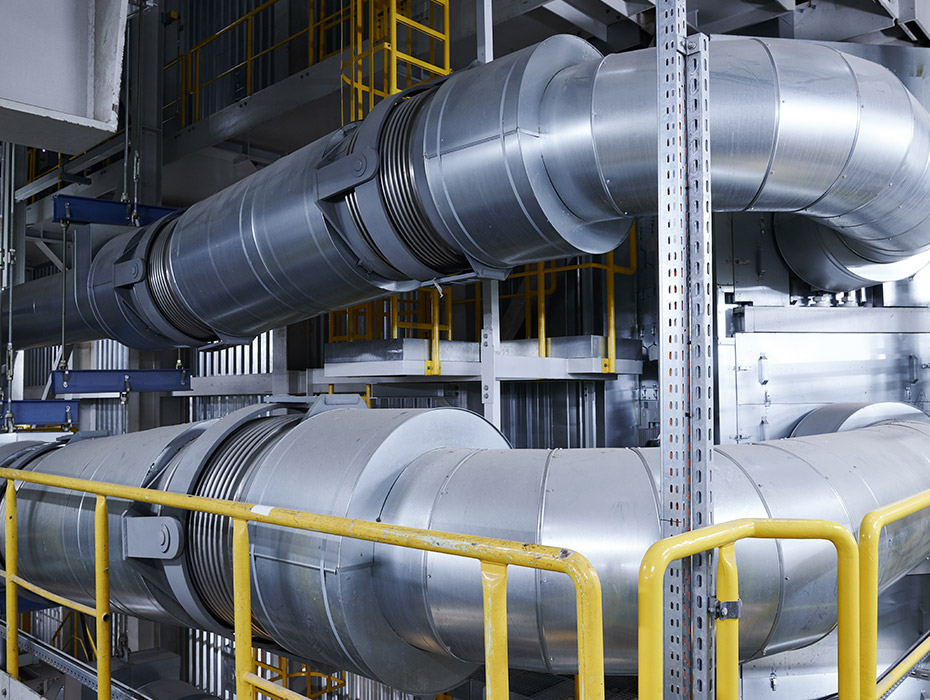

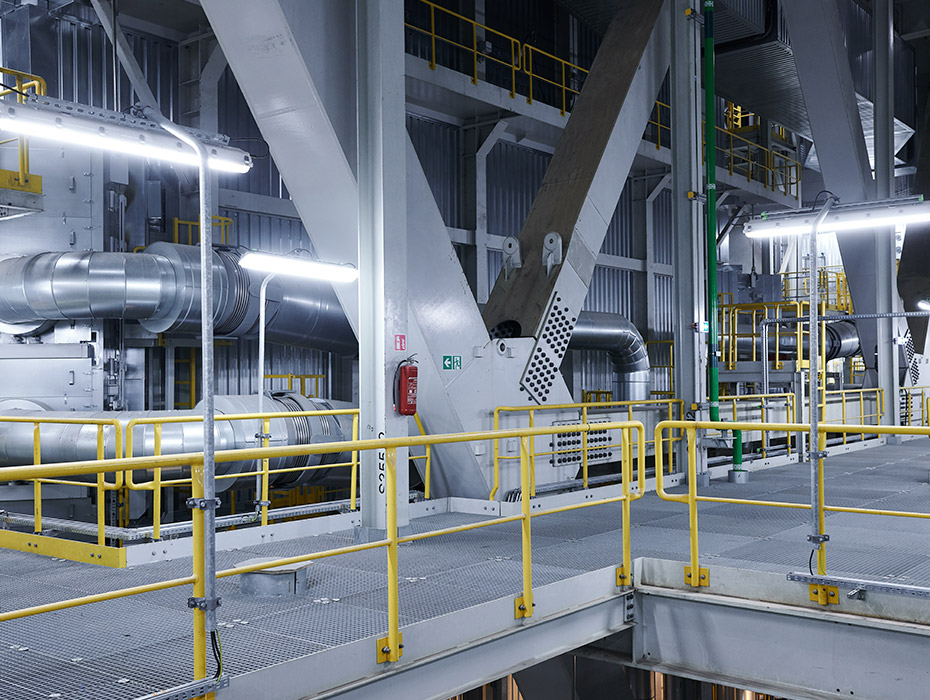

INSTALLED COAL DUST PIPING BELLOWS
Power plant
Poland
EN 13445
State-of-the-art Coal Dust Piping Bellows engineered to eliminate coal dust emissions between mills and burners! In 2018 Belman successfully designed and manufactured 41 sets of Coal Dust Piping bellows for a newly built unit in a Polish power plant. The Coal Dust Piping Bellows are now installed and successfully tested. The unit will be commissioned in the near future.
Installation point and requirements
The design parameters were critical due to the location of the Coal Dust Piping Bellows on the boilers pulverized fuel ducts. The power plant was equipped with supercritical once-through pulverized fuel boiler for bituminous coal and an extraction-condensing turbo. This was located in a closed cooling water system with a wet cooling tower. Coal dust is extremely abrasive and can clog the bellows of the Coal Dust Piping Bellows. For that reason, a special Coal Dust Piping Bellow solution was required.
The design of the Coal Dust Piping Bellows
To learn more about the design of the Coal Dust Piping Bellows, please refer to the case story:
DESIGN FEATURES
The Refractory Lined Expansion Joints have the following design parameters:
Dimension: DN 600 • Length: 3460 mm • Medium: Air mixture of coal dust • Design temperature: 140°C • Design pressure: 0,05 barG • AX: +/-80 mm • LA: +/-596,6 mm • Bellows: 1.4541 • Welding ends: 1.0345 • Flanges: 1.0425 • Middle pipe: 1.0345 • Design code: EN 13445
CLIENT BENEFIT
- Short on-time delivery
- Coal dust emissions prevented between the mill and the burner contribute to reducing pollution and environmental issues for the plant
- Reliability of the Expansion Joint designed to work under the operating parameters
- Increased working efficiency and lengthened life cycle reduce operating costs and downtime.
- Benefit from the considerable know-how of an experienced manufacturer
RELATED INFORMATION
TECHNICAL information
- Technical information on Angular Expansion Joints is available in the Expansion Joint Catalogue
page 29 -30
